  1. EtherNet/IP Core V3
  2. PSEIP-288

Add API mechanism for altering device status (Identity attributes 5/8) and signaling of application faults

    Details

    • Type: New Feature
    • Status: Closed
    • Priority: Minor
    • Resolution: Fixed
    • Affects Version/s: None
    • Fix Version/s: V3.8.5.0
    • Component/s: None
    • Labels:
      None
    • Account:
      SPC EthernetIp Core (SPCETHERNET)

      Description

      User Story:

      As a host application, I want to forward application specific fault states to the EtherNet/IP firmware so that the state becomes visible through EtherNet/IP means (Module Status LED and the corresponding Identity status (5) and state (8) attributes).



      Background information:

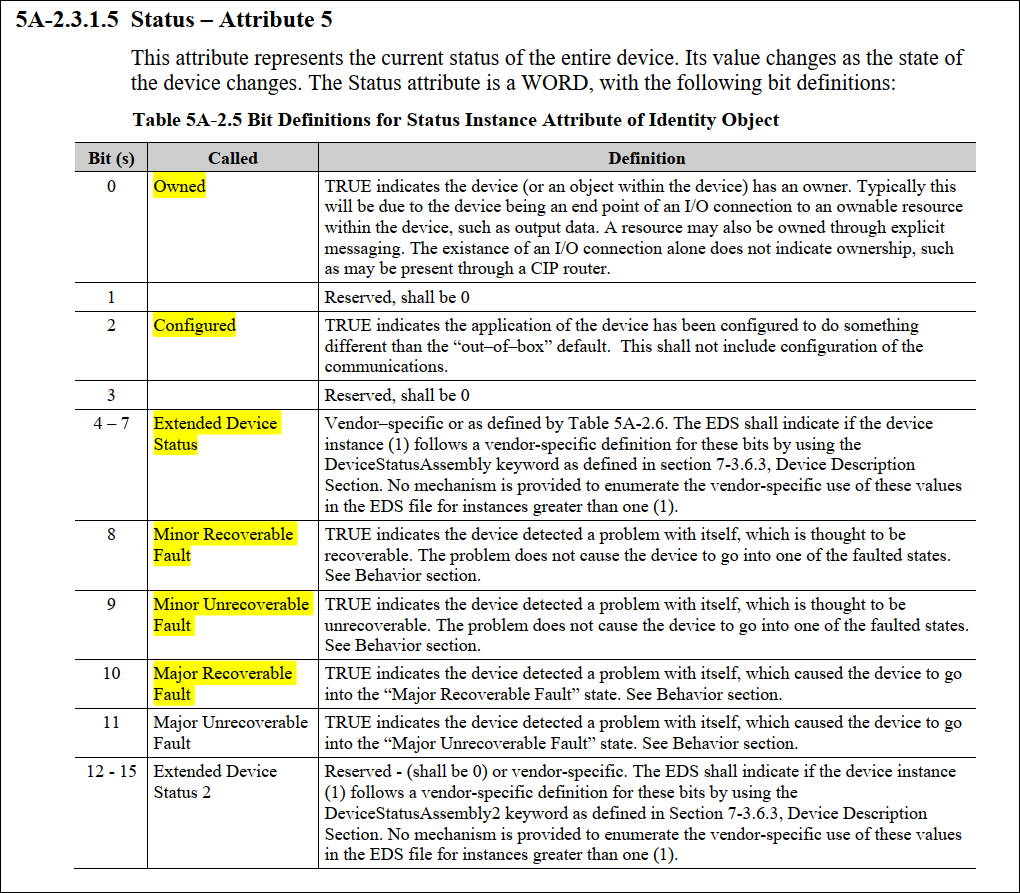

      With the V2 firmware generation, the host application had the possibility to set bit 8-11 of Identity status attribute 5.
      This in turn also influenced the module status LED and state Identity attribute 8.

      We need to provide a similar mechanism for the EtherNet/IP Core V3 generation.
      In addition, the host application shall be able to modify bit 0 "Owned" and bit 2 "Configured".





      Development Recap/Summary:

      • Attributes 768 "internal status" and 769 "forced status" have been added to identity object
      • Attribute 768 is the stack's internal status (formerly 5)
      • Attribute 769 can be used to force specific bits in 5 from the host application side.
        Owned, configured and Fault bits can be altered.
      • Major fault bits are deeply integrated with the module status, all others are non-functional.
      • The major interface module towards device status is EIP_STATUS_*, which has been extended to consider the cases "host signaled fault" and "stack signaled fault" in a para-virtualized manner.
        Note the redundant definitions EIP_STATUS_HOST* to identity the host as the error source.
      • Identity attributes are handled in the identity object whenever possible and escalate towards EIP_STATUS_HOST* on demand (e.g. fault bits)
      • Features "LED forcing", "Exclusive host modification of attribute 8" and this new feature are partially overlapping functionally, though they are technically mostly independent mechanisms.
