  1. PROFINET IO IRT-Controller DTM
  2. DTMV1PNCIRT-842

changed Delay time value in Topologie-Editor after loading configuration

    Details

    • Account:
      SPC Profinet Master (SPCPROFINETMA)

      Description

      During configuration one of the delay time caused by the cable length of a PROFINET device errors occur. The entered value is changed after saving and loading the configuration.
      The error can be reproduced as follows.
      - Start SYCON.net
      - Insert PROFINET Controller V3 (e.g. CIFX RE/PNM V3)
      - Insert PROFINET Device (e.g. CIFX RE/PNS V4.7.0.0 - V4.x SR)
      - Open the PROFINET Topology Editor

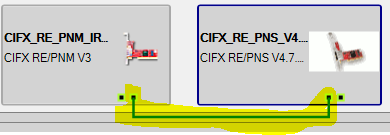

      - Connect a port of the controller with a port of the device


      - Select the device in the topology editor

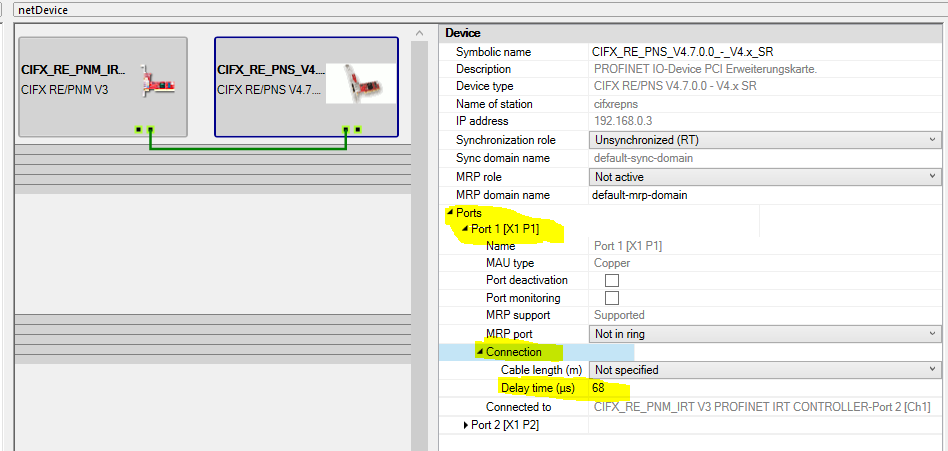

      - Enter a value for the delay time in the property grid of the topology editor (see picture)

      - Save configuration
      - Exit SYCON.net
      - Start SYCON.net
      - Load configuration
      - Open Topology Editor
      - Select PROFINET devices

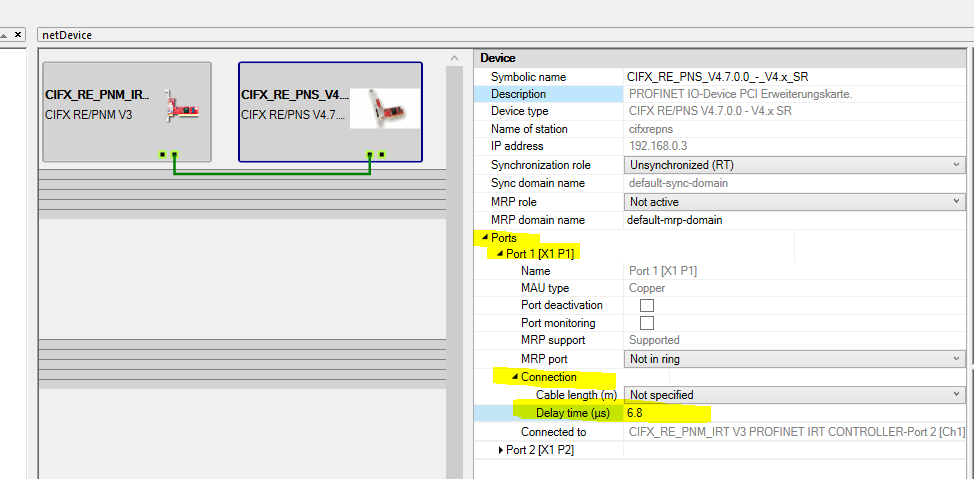

      - View the delay time in the property handle
