Details
Minor
Description

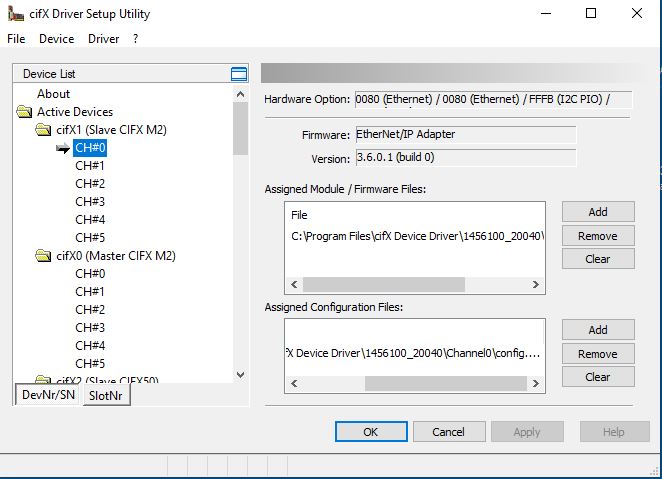

CIFX M3042100BM & AIFX-RE\M2
COMSOL-EIS V3.6.0.1
COMSOL-EIM V2.11.0.2
Sycon.net V1.0500.210609.36747
The configuration of Sycon.net you find in the attached EIS_Check.zip.
I made a special configuration to check the LEDs for duplicate IP. After this check I could not reset the CIFX and a download of configuration fails!
First the steps I made to check the NS LED for duplicate IP:
1. Configuration of a running Ethernet IP project like the attached Sycon.net project.
2. Configuration of a second EIS with same IP address like the EIS in running project.
3. Disconnect the EIM from EIS and connect now both EIS mit same IP address.

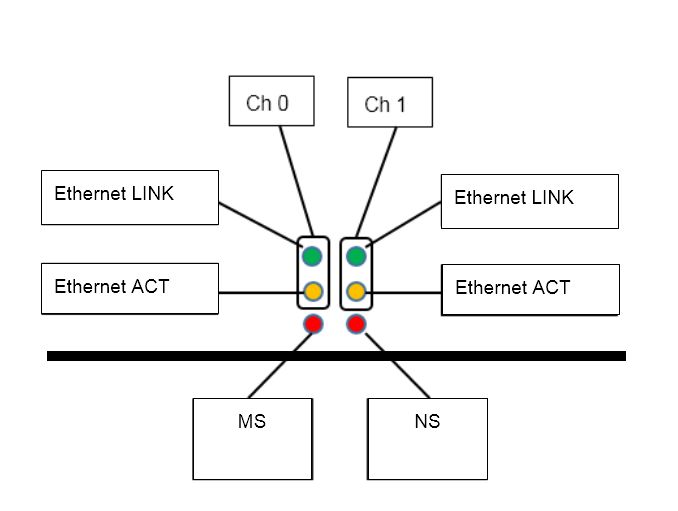

4. Check now the LEDs of EIS which was connect to EIM before. |
Until now all looks ok and the LED shows the error status.
Now to the mistake with the next steps:
5. After I reconnect the EIS back to the EIM the MS and NS LEDs show the same error status.

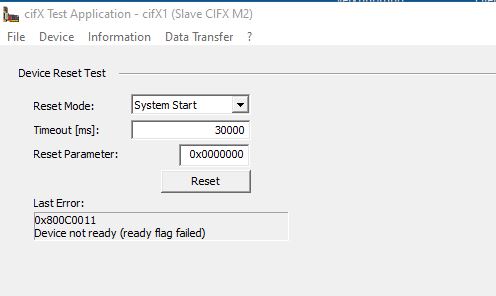

6. Now I made a reset in the CIFX DRIVER TEST with following error: |
The LED status was now NS= red on and MS is off.
Why it's not possible to reset the EIS?
To fix this you must restart the hole computer and after restart the communication is running again between EIS and EIM.

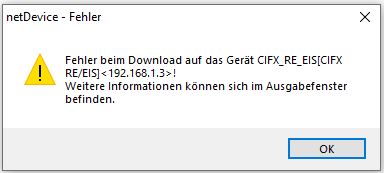

7. If you try after reset a configuration download to the EIS by Sycon.net you get the following error message: |
|
This is all very confusing, normally it's should be possible after a reset(Step 6) to start the communication again!
I have the same problem by Watchdog error the reset have the same problem!
