T2O socket item in Forward Open response is sent with wrong port number

    Details

    • Type: Bug
    • Status: Closed
    • Priority: Minor
    • Resolution: Fixed
    • Affects Version/s: None
    • Fix Version/s: V2.5.0.5, V2.6.0.0
    • Labels:
      None
    • Account:
      SPC EthernetIp Core (SPCETHERNET)

      Description

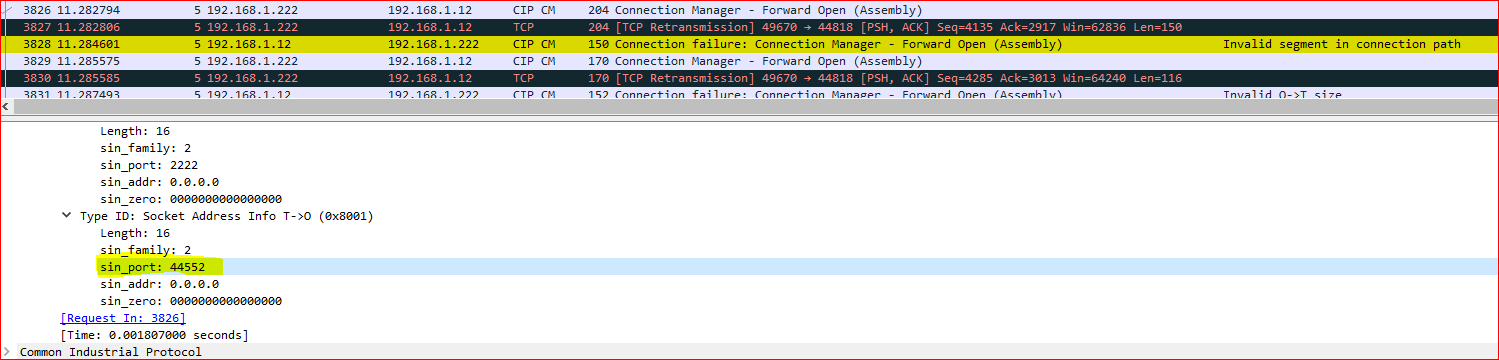

      T2O socket item in Forward Open response is sent with port number 0xAE08 instead of 0x08AE.
      Detected by CT18 Release Candiate 1.





      2546	 Sending
      2547	  Encapsulation Header 6F 00 7E 00 00 00 01 03 00 00 00 00 3C 89 02 00 00 00 00 00 00 00 00 00
      2548	  Command Specific Data 00 00 00 00 10 00 04 00 00 00 00 00 B2 00 46 00
      2549	  CIP Data 54 02 20 06 24 01 06 28 00 00 00 00 00 00 00 00 8D 01 18 00 78 56 34 12 00 00 00 00 A0 86 01 00
                 09 48 A0 86 01 00 07 48 01 0E 34 05 1B 01 0C 00 01 03 01 01 53 4F 00 00 20 04 24 66 2C 64 2C 65
                 80 02 00 00 00 00 00 80 10 00 00 02 08 AE 00 00 00 00 00 00 00 00 00 00 00 00 01 80 10 00 00 02
                 08 AE 00 00 00 00 00 00 00 00 00 00 00 00
      2550	 Received
      2551	  Encapsulation Header 6F 00 48 00 00 00 01 03 00 00 00 00 3C 89 02 00 00 00 00 00 00 00 00 00
      2552	  Command Specific Data 00 00 00 00 00 00 04 00 00 00 00 00 B2 00 10 00
      2553	  CIP Data D4 00 01 01 15 03 8D 01 18 00 78 56 34 12 0E 00 00 80 10 00 00 02 08 AE 00 00 00 00 00 00 00 00
                 00 00 00 00 01 80 10 00 00 02 AE 08 00 00 00 00 00 00 00 00 00 00 00 00
      2554	  1> ** Warning: ForwardOpen requested port 0x8AE, the DUT responded with port 0xAE08.
