Uploaded image for project: 'EtherNet/IP Core V3'
  1. EtherNet/IP Core V3
  2. PSEIP-449

Adapt handling of Extended Device Status to respect also InputOnly/ListenOnly connections

          Details

          • Type: Bug
          • Status: Closed
          • Priority: Minor
          • Resolution: Fixed
          • Affects Version/s: None
          • Fix Version/s: V3.7.0.5, V3.7.2.0
          • Component/s: Core
          • Labels:
            None
          • Account:
            SPC EthernetIp Core (SPCETHERNET)

            Description

            In the case where at least one CIP class 0/1 InputOnly connection is opened with the device, but no Exlusive Owner Connections, the Identity Object Attribute 5 reflected "no I/O connections established" as the Extended Device Status. This has been changed.

            Now, in this particular case, the Extended Device Status will be set to "at least one I/O connection established, all in IDLE mode".

            Note that, per definition, a InputOnly/ListenOnly connection cannot set a RUN status in the device. Hence the InputOnly/ListenOnly is always classified as an IDLE mode connection here.

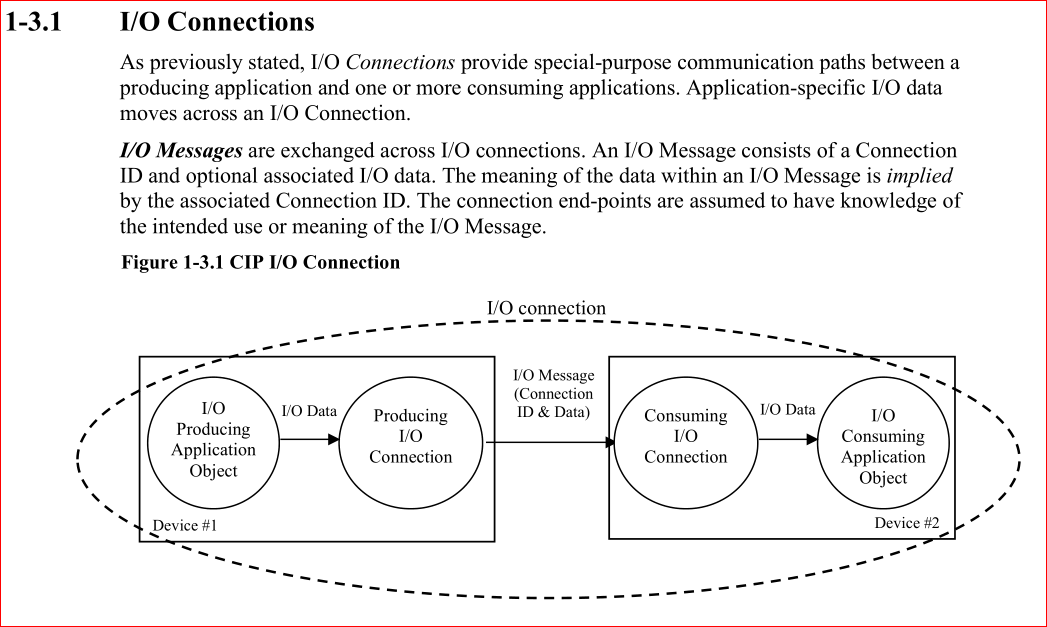

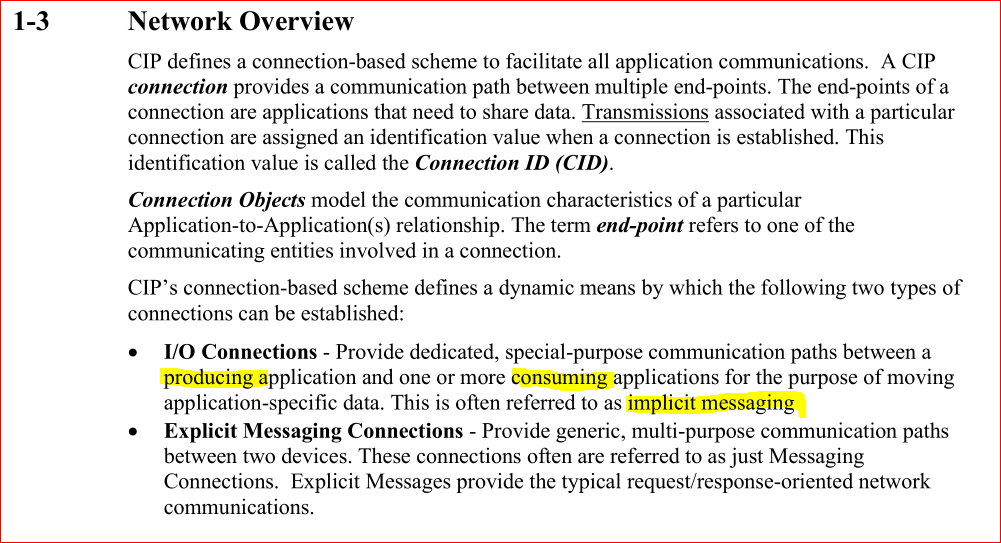

            According to CIP Volume 1 an I/O connection is defined as:
